Storage Modes in Power BI

  • Published
  • Posted in Blog / General / Power BI
  • Updated
  • 7 mins read

Power BI is a powerful business intelligence tool that enables users to analyze and visualize data effectively. One of the critical aspects of Power BI is its storage mode, which determines how data is stored, accessed, and processed. Choosing the appropriate storage mode impacts performance, data freshness, and query execution. Understanding different storage modes and selecting the right one is crucial for optimizing report performance and ensuring efficient data management.

Definition of Storage Mode

Storage mode in Power BI refers to the method by which data is stored and retrieved for analysis and visualization. It influences performance, refresh frequency, and query execution. Power BI provides different storage modes to accommodate various business needs and data sources. The choice of storage mode directly affects the speed of query execution, the accuracy of real-time reporting, and the amount of system resources required for processing.

Types of Storage Modes

Power BI offers three primary storage modes:

  1. Import Mode
  1. DirectQuery Mode
  1. Composite Mode

Each of these storage modes has its own advantages, disadvantages, and best-use scenarios, making it essential for users to understand their functionalities before selecting one for their reports.

1. Import Mode

In Import Mode, data is fully loaded into Power BI’s memory, allowing for fast performance and advanced modeling capabilities. This mode is the default and the most commonly used storage option in Power BI, as it enables users to work with data without being dependent on a live connection to the original data source. Since data is stored in the Power BI Desktop file (PBIX), users can perform extensive transformations and optimizations.

Pros:

  • High performance due to in-memory processing.
  • Supports advanced DAX calculations and complex transformations.
  • Works offline as data is stored locally in the PBIX file.
  • Reduces dependency on external databases, leading to faster report rendering.

Cons:

  • Data refresh is required to keep reports updated.
  • Large datasets can lead to increased file size and memory consumption.
  • Refresh frequency is limited based on Power BI licensing (e.g., 8 times per day for Power BI Pro and up to 48 times per day for Power BI Premium).
  • Initial data load can take a long time if the dataset is large.

When to Use:

  • When performance is a priority and users need faster response times.
  • When working with small to medium-sized datasets that can be stored efficiently.
  • When offline access to data is required for report development and analysis.
  • When advanced data modeling, complex calculations, or relationships between tables need to be established.

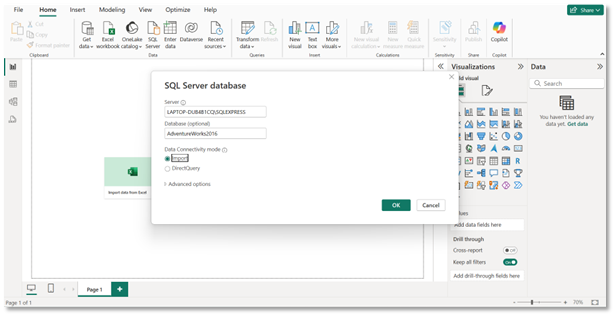

How to Use:

  • Connect to a data source from Power BI.
  • Select the Import option while loading data.
  • Load the data into Power BI Desktop and build reports.
  • Apply necessary transformations in Power Query Editor.
  • Schedule refreshes as needed to update the dataset.

2. DirectQuery Mode

In DirectQuery Mode, data remains in the source system, and queries are executed in real time. This mode does not import data into Power BI but instead queries the database whenever a user interacts with the report. It is useful when dealing with extremely large datasets that cannot be imported into memory due to size constraints.

Pros:

  • Real-time data access ensures up-to-date reports.
  • No need for scheduled refreshes since data is fetched directly from the source.
  • Suitable for large datasets without consuming local storage.
  • Useful for scenarios where data security policies restrict data extraction and storage.

Cons:

  • Performance depends on the data source’s query execution speed.
  • Limited support for DAX functions and complex transformations compared to Import Mode.
  • Requires a stable and fast connection to the data source to ensure smooth reporting.
  • Frequent queries to the database can increase load and affect the source system’s performance.

When to Use:

  • When real-time or near real-time data is required for reporting.
  • When working with very large datasets that cannot be imported into Power BI due to memory limitations.
  • When database security policies prevent storing data outside the source system.
  • When users need up-to-date insights without scheduling frequent data refreshes.

How to Use:

  • Connect to a supported data source.
  • Select DirectQuery mode while loading data.
  • Build reports that query data in real-time.
  • Optimize database queries to improve report performance.
  • Use aggregations to speed up queries when possible.

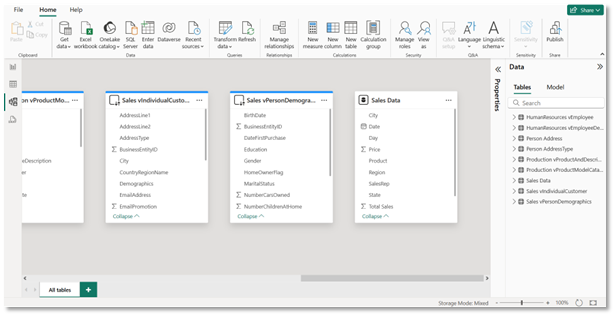

3. Composite Mode

Composite Mode allows a mix of Import and DirectQuery modes, providing flexibility in handling data. This mode was introduced to overcome the limitations of Import and DirectQuery modes by allowing users to selectively choose which tables should be imported and which should remain in DirectQuery.

Pros:

  • Offers a balance between performance (Import) and real-time access (DirectQuery).
  • Allows selective importing of frequently accessed data while keeping large datasets in DirectQuery.
  • Provides flexibility for different reporting needs.
  • Optimizes report performance while ensuring up-to-date insights for critical data.

Cons:

  • Increased complexity in managing data models, as users must carefully decide which tables should be in Import mode and which in DirectQuery.
  • Requires careful optimization to avoid performance issues.
  • Some DAX functions may not work as expected when mixing storage modes.
  • Data refresh strategies need to be managed efficiently to avoid inconsistencies.

When to Use:

  • When some data needs real-time updates while other data can be stored in-memory for fast querying.
  • When working with hybrid data sources that have both static and dynamic data needs.
  • When optimizing performance while ensuring up-to-date reporting.
  • When dealing with enterprise-level reporting that requires scalability and flexibility.

How to Use:

  • Connect to multiple data sources in Power BI.
  • Select Import for frequently used data and DirectQuery for real-time data.
  • Define relationships and manage storage modes effectively within the Power BI model.
  • Use aggregations and caching mechanisms to optimize performance.

Conclusion

Choosing the right storage mode in Power BI depends on factors such as dataset size, performance requirements, refresh frequency, and business needs. Import Mode is best for high-performance scenarios where users need fast response times and offline access. DirectQuery Mode is ideal for real-time data access but depends on the source system’s performance. Composite Mode offers the best of both worlds, allowing flexibility to optimize performance and maintain real-time access where needed.

Understanding the strengths and limitations of each mode helps in designing efficient and scalable Power BI reports, ensuring users get the best insights with optimal performance. Organizations should assess their data strategy and select the appropriate storage mode that aligns with their analytical and business objectives.
